Safety Features

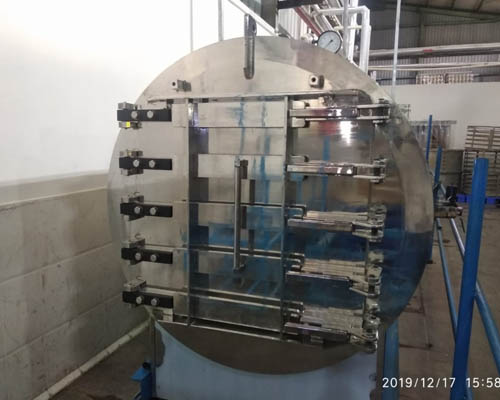

Three stage safety arrangements is in built a) mechanical b) solenoid operated air vents Emergency option at control panel Door cannot be opened when retort chamber is under pressure
- Faults are indicated by an audible and visible alarm.
- Audiovisual signal for High limit of temperature during sterilization.
- Audiovisual signal for low limit of temperature during sterilization.
Quality and workmanship
MOC can be SS 304. or SS 304L procured from reputed manufacturers. Where the manufacturers markings are not available they are tested in NABL labs for confirmation of chemical composition. GMP standards are strictly adhered to. Design will confirm to IS 2835 : Code for unfired pressure vessels TIG ARGON welding of all welds is considered as a must with no compromise. The visible surfaces are mirror finished to achieve an aesthetic look. Wear resistant stainless steel wheels are chosen to facilitate trolley movements inside the retort. They obviate the need for mechanized maintenance prone movement.
